Outrigger pad

Raw material: UHMWPE
Size: Customizable
Color: Black or other
Performance: Strong pressure resistance, wear resistance, corrosion resistance, aging resistance

Category：

Outrigger pad

Product Description

Benefits of our plastic ground pads (outrigger pads) Big strength and supports Safety is critical when lifting and lowering heavy equipment. Traditionally wooden cribs have been used to provide temporary structures to support and stabilise loads, but when left outside and exposed to the elements they splinter and rot. Engineered from High Density Polyethylene (HDPE) our cribbing block products are resistant to water and chemicals.
UHMWPE Crane Outrigger Pad Customized Base Board Heavy Cribbing Pad on Sale
HDPE Engineering Plastic Crane Outrigger Base Plate
HDPE outrigger pad crane foot support stabiliser plate

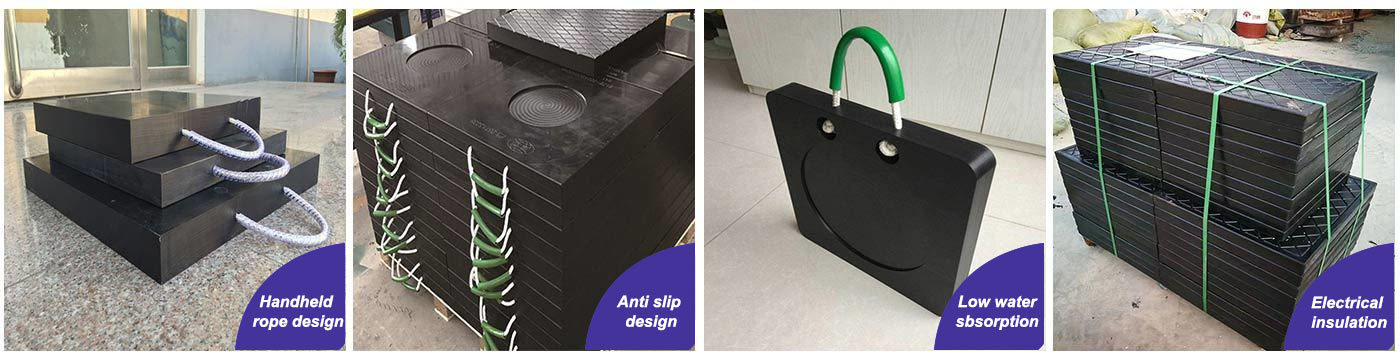

Outrigger pad is mainly used to pad under the outrigger of construction machinery for support. The UHMWPE outrigger base plate has high strength and stiffness, which can reduce the deformation of the base plate body under stress and provide more stable support for construction machinery.

Specification

Scope of application reference
SPES	L/mm	W/mm	THK/mm	WT/kg	range of application
30030040	300	300	40	3.844	scaling ladder
30030050	300	300	50	4.805	scaling ladder
40040040	400	400	40	6.724	scaling ladder/＜ 5 tons
40040050	400	400	50	8.405	pumper/5-10tons
40040060	400	400	60	10.086	pumper/10-15tons
50050040	500	500	40	10.404	pumper/15-20tons
50050050	500	500	50	13.005	20-25tons
50050060	500	500	60	15.606	25-30tons
60060050	600	600	50	18.605	30-35tons
60060060	600	600	60	22.326	35-40tons
60060080	600	600	80	29.768	40-45tons
70070070	700	700	70	35.287	45-50tons
70070080	700	700	80	40.328	50-55tons
80080080	800	800	80	52.488	55-60tons
1000100070	1000	1000	70	70	60-70tons
10001000100	1000	1000	100	100	＞80tons
The above parameters are for reference only, Maybe there's an error,please according to construction conditions custom specifications. （Red font is processed products, not mold products）

Company Profile

Packing and shipping

Application

FAQ

6.Why chose us?

A：

ManyYears of experience in UHMWPE production. High virgin grade with 100% high quality raw material. Package and delivery byinternational standard pallet Strict test equipments.

5.Where are we?

A：

Our company located in the UHMWPE products intensive center, Dezhou City,ShanDong Province,China.

4.What we do?

A：

We produce all kinds of UHMWPE, HDPE products for any shapes, sheets, rollers, gears all you need.

3.What is UHMWPE Sheet used for?

A：

Because UHMWPE sheet has excellent abrasion resistance it is often used for lining chutes and hoppers in aggressive and highly abrasive environments, which is why you’ll find it at the quarry. Its also found in food production environments where high volumes of containers like cans or bottles need to be guided along conveyors or production lines.

3.What is UHMWPE Sheet used for?

A：

2.Why should you choose UHMWPE Sheet?

A：

What makes UHMWPE such a distinctive and useful engineering plastic is its combination of excellent properties, which are;outstanding abrasion resistance, superior impact resistance, non-sticking and self-lubricating and excellent mechanical properties, even in cryogenic condition.
